Tungsten Plate (W Plate)
Tungsten rolled products available from us, including tungsten plate, sheet, and foil with various options on width, length and thickness. Tungsten rolled products are fabricated from pressed and sintered powder metallurgy ingot. Ingots are first forged into tungsten block blank, and then rolled to plate, sheet and foil.
We provide tungsten plate with purity W≥99.95%, which are widely used in ion implantation, sputtering and coating, medical CT, electronics and vacuum high temparature equipment.
Basic information of our W plate
| Product | Tungsten Plate |
|---|---|
| Item No. | PM74-P |
| Purity | W≥99.95% |
| Specification | ASTM B760 |
| Process | Pressing-sintering-Rolling-Annealing-Surface treatment |
| Properties | Application | Surface treatments |
|---|---|---|
|
|
|
-
Tungsten Plate -
Grinding & Chemical cleaned Plate
With many years of experience in processing tungsten plate materials, our well-trained technicians are able to perform the following processes for various tungsten plates made of pure tungsten, tungsten nickel copper alloy, tungsten nickel iron alloy, copper tungsten, lanthanum tungsten.
-Turning
-Milling
-Drilling
-Cutting
-Grinding
-Punching
-Joining
-Forming
-EDM
Tungsten Grinding Plate Dimensions:
| Thickness | Width (Max, mm) | Length (Max, mm) |
|---|---|---|
|
3.0~4.0mm (0.118"~0.157") |
250 (9.84") |
600 (23.6") |
|
4.0-6.0mm (0.157"~0.236") |
300 (11.8") |
600 (23.6") |
|
6.0~8.0mm (0.236"~0.315") |
300 (11.8") |
800 (31.5") |
|
8.0~10.0mm (0.315"~0.394") |
300 (11.8") |
750 (29.5") |
|
10.0~14.00mm (0.394" ~0.55") |
200 (7.87") |
650 (25.6") |
|
>14.0mm (>0.55") |
200 (7.87") |
500 (19.7") |
Thinner tungsten sheets will be only supplied with chemical cleaned surface.
Packing & pictures for our W plates
W plates are fragile and heavy; careful handling is needed. The standard package for plates is a wooden crate, so that the plate can be protected during handling and transportation. Cartons are also used for small plates.
-

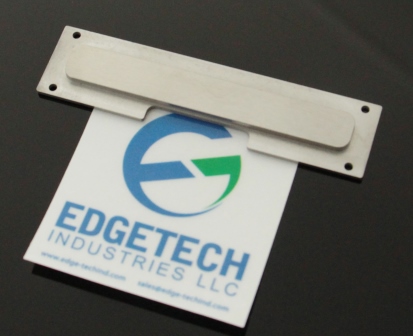

Machined W Plate -

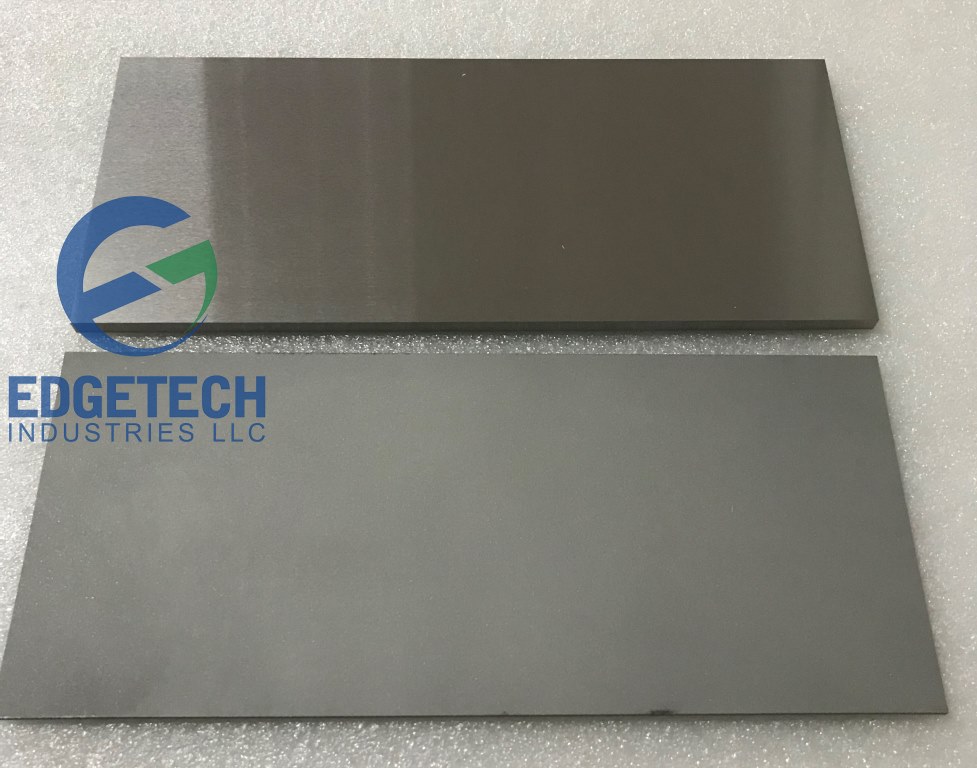

Plate -
Tungsten Packing -
Tungsten Packing
Related tungsten Products
Tungsten Sheets, Tungsten Foil, Tungsten Disc & Tunsgten Square, Tungsten Coat, Tungsten Block, Tungsten Sputtering Target, etc.
Machined & customized tungsten parts from tungsten are also available. Contact us at sales@edge-techind.com for any inquiries and questions on pure tungsten products.
