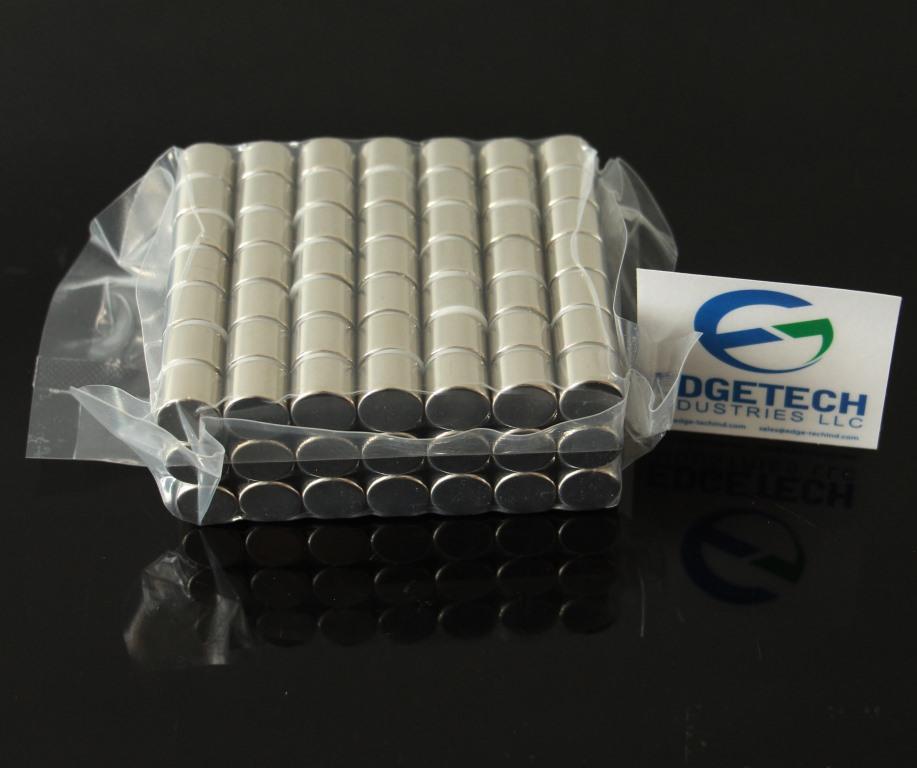

Neodymium Disc Magnets

Also known as rare earth disc magnets, neodymium magnets are the perfect combination of small size and maximum strength. Since the diameter is larger than the thickness, the disc has a very strong magnetic field and high coercivity. This type of permanent magnet is used in different applications such as metal separation, magnetic therapy, booklet closing, school science experiments, jewelry making, packaging, bookbinding, point-of-sale displays, and appliances, to name a few.

Neodymium magnets are graded according to their strength, which is related to the magnetic flux density output per unit volume. Higher values ​​indicate stronger magnetic forces, ranging from N35 to N52. The letter after the grade indicates the maximum operating temperature, ranging from M (up to 100 degrees Celsius) to EH (200 degrees Celsius).

NdFeB Disc Magnet Product Information
Material: NdFeB, neodymium iron boron
Shape: Disc
Tolerance: ±0.004″for all dimensions
Grades: N35, N42, N52, N48, N45, N35, N45M, N48M, etc.
Coating: Ni, Ni+Cu+Ni, Zn, Epoxy, etc.
Magnetic Direction: Thickness Direction, Diameter Direction
Maximum Operating Temperature (°C/°F): 80/176

NdFeB Disc Magnet is one of the basic shapes of NdFeB magnets. This type of magnet can be used in a variety of applications. Edgetech Industries can provide NdFeB Disc Magnets in different sizes. For more information on the characteristics and parameters of each grade of Neodymium Magnets, please visit our website Neodymium Magnet Grades.

The most popular grades are N42 and N52. If you require a specific size that is not available on our website, please contact us at sales@edge-techind.com or use our online custom magnet quote form.
