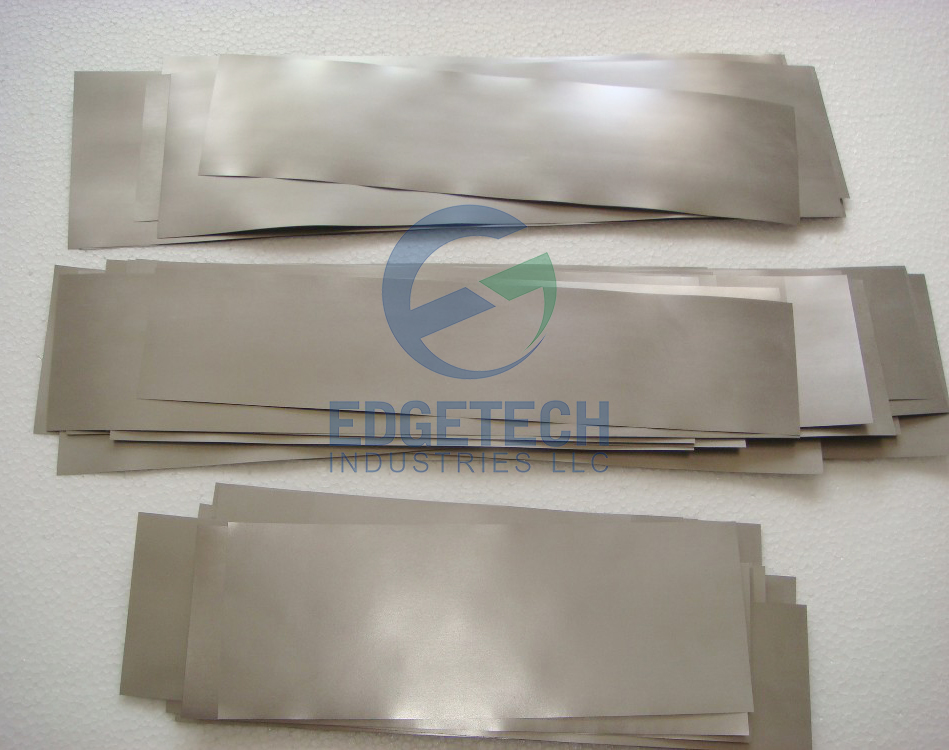

Tungsten Foil
Tungsten rolling products available from Edgetech Industries, including tungsten foil, plate and sheet with many options on width, length and thickness. Pure tungsten rolled products are fabricated from pressed and sintered powder metallurgy ingot, tungsten foil is rolled from tugnsten sheet.
Tungsten foil cannot be mechanically treated on the surface, so it is not possible to provide foil with a polished surface, and its flatness will be relatively poor. Some warping is normal.
| Properties | Application | Surface treatment of sheet |
|---|---|---|
|
|
|
-
Tungsten Foil -
W Sheet
Dimensions of our tungsten foil (W foil)
| Thickness | Width | Length |
|---|---|---|
| 0.05-0.1 | 100 | L |
| 0.10-0.15 | 100 | 200 |
Specifications of W foil
| Product | Tungsten Foil |
|---|---|
| Item No. | PM74-F |
| Purity | W≥99.95% |
| Specification | ASTM B760 |
| Process | Pressing-sintering-Rolling |
| Surface | Chemically Cleaned, Hot rolled |
Tungsten metal has poor rolling properties and is very brittle. This means that the production of tungsten foil requires extensive experience, and tungsten foil cannot be provided in rolls, only very thin flat sheets, and the size range is therefore limited. Please provide the specific size and quantity you need, and we will respond within 24 hours.
