Molybdenum tubes and pipe can be used under temperatures up to 1,800 degrees, in components of electron tubes, heaters of high-temperature furnaces thermocouple retainers, etc. Moly tubes can also be used as a rotary target for coating, which is widely used in solar industries.

Advantages of molybdenum metal

Molybdenum has unique mechanical and chemical properties and is an excellent material that meets the most stringent requirements.
-High purity and excellent creep resistance
-High dimensional stability and excellent corrosion resistance
-High thermal conductivity and low thermal expansion

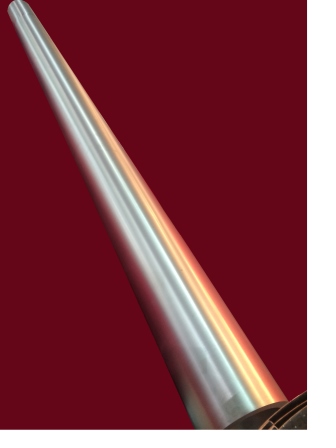

• Molybdenum tube
• Molybdenum Tube & Disc

Edgetech Industries LLC (ETI) provides Moly tubes from forged rods and sintering directly. Mo tubes with OD smaller than 60mm are mostly machined and gun-drilled from a forged rod, tube with a larger diameter are sintered per size directly. The process methods of tubes and crucibles are always for saving cost and according to customer’s requirement.

The smallest tube we can carry is 0.187" outer diameter with 0.025" wall thickness, largest can be with 500mm outer diameter. We can also provide TZM alloy tube and Mo-La alloy tubing, but with a more narrow size range. The hardness of TZM Alloy is higher and it’s harder to be machined. The minimum OD for the TZM alloy tube and Mo-La tube is 10mm, length will be limited according to OD and wall thickness.

Specification for our Moly tube

We can also provide welding molybdenum tube and riveting molybdenum tubing that is made by molybdenum sheet and molybdenum strip. These large molybdenum tubes are used as molybdenum heat shielding and liners.

Please send us your specifications for molybdenum tube to sales@edge-techind.com.

Packaging for our molybdenum tube

The standard package for molybdenum tube, TZM Alloy Tube, and Mo-La alloy tube is a wooden crate, which protects the molybdenum tube during handling and transportation.

Pictures for molybdenum tube & molybdenum parts

• Molybdenum Rotating target

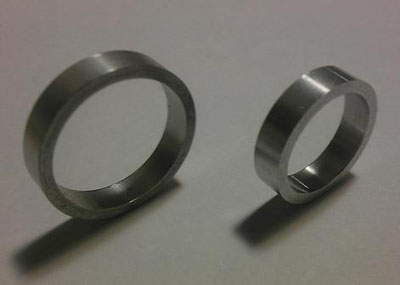

• Molybdenum Ring (Cut from tube)

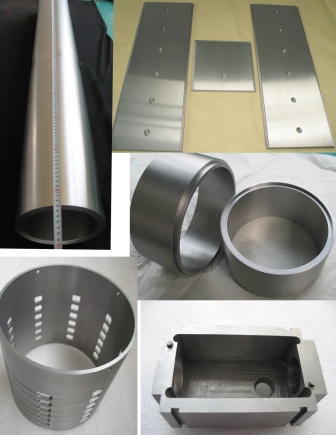

• Molybdenum Tube & Moly Parts
• Molybdenum packing
