D101-N52 Neodymium Magnet

Email us

The small D101-N52 neodymium disc magnet is made from super strong N52 NdFeB( Nd2Fe14B), coated with Nickel as neodymium magnets get oxidized easily.  Even though these discs are tiny, just one or two of these incredible magnets will hold a sheet of 8 1/2″ x 11″ paper to a fridge or filing cabinet.

Dimensions: 1/16″ dia. x 1/32″ thick

Tolerances: ±0.004″ x ±0.004″

Material: NdFeB, Grade N52

Plating/Coating: Ni-Cu-Ni (Nickel)

Magnetization Direction: Axial (Poles on Flat Ends)

Weight: 0.000416 oz. (0.0118 g)

Surface Field: 5233 Gauss

Max Operating Temp: 176ºF (80ºC)

Brmax: 14,800 Gauss

BHmax:  52 MGOe

Safety Tips

Please keep these micro neodymium magnets away from kids and teenages, as these magnets may cause severe injury(even death) if been swallowed. Please check our safety guideline before handle these magnets.

Edgetech Industries can provide NdFeB Disc Magnets in different sizes. For more information on the characteristics and parameters of each grade of Neodymium Magnets, please visit our website Neodymium Magnet Grades.

If you require a specific size that is not available on our website, please contact us at sales@edge-techind.com or use our online custom magnet quote form.

Production process of NdFeB magnets

We can also provide magnets with adhesive backing, custom shaped magnets and various types of magnetic components.

• Magnetization direction of Disc
• Disc Dimennsions
• 3M adhesive disc magnets
• 3M adhesive disc magnets

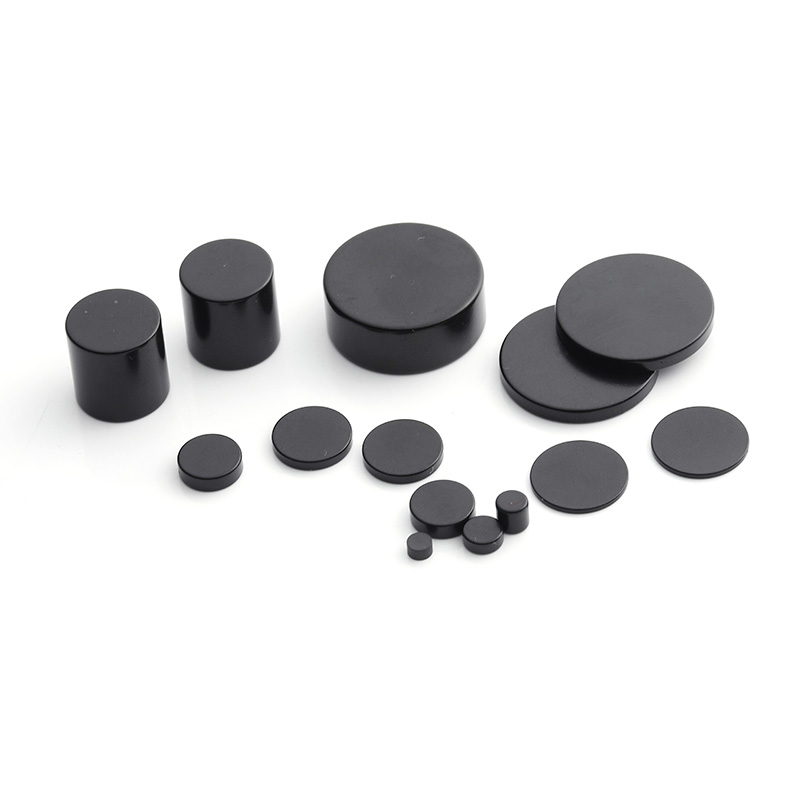

• NdFeB disc magnets
• N52 disc magnets

Our magnets are all packaged in magnetically isolated packaging, and the inner packaging is determined according to the shape and size of the product.

• Separation of magnets
• Magnets Packing
